PVDC for Fresh Meat Packaging

Aosen New Material is a professional and reliable supplier of PVDC (Polyvinylidene Chloride ). PVDC is a synthetic copolymer polymerized from VDC and other monomers. It has a high gloss and excellent barrier properties to oxygen,odour and water vapor. Aim for the different purposes from customers, our plant develops and produces PVDC resin suitable for various fields.Such like PVDC for Fresh Meat Packaging, PVDC for Cheese Packaging,PVDC for Plastic Wrap etc. Various grades PVDC resin provide customers with excellent packaging solutions to further optimize the performance of their packagings.

Send Inquiry

Product Description

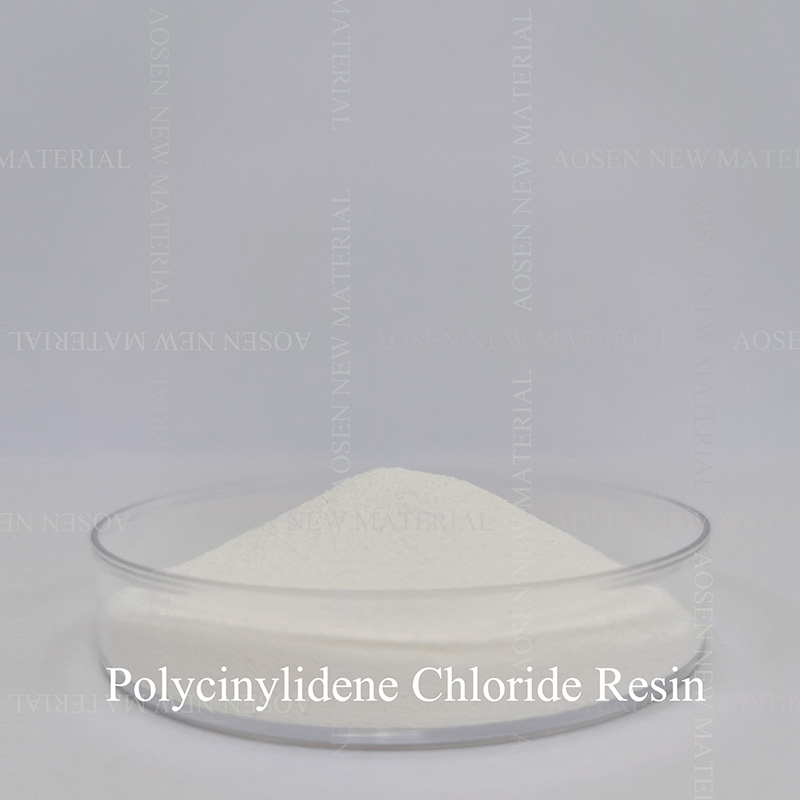

PVDC Resin 10 is a heat-sensitive resin which synthesized by suspension copolymerization of VDC-MA. It has a high gloss and excellent barrier property to oxygen,odour and water vapor. PVDC Resin 10 can be composited processing into multi-layer coextrusion film with PE、EVA and other material by casting or blowing ,with superior water vapor and oxygen barrier,Good heat shrinkage performance at low temperature. PVDC Resin 10 can be applicated into a variety of fresh meat packaging andprotective fabrics

Properities Of PVDC For Fresh Meat Packaging

Item	Value
Appearance	White powder
Relative viscosity (1% THF solution,25℃)	1.41-1.46
Apparent density	0.80-0.88g/ml
Volatiles(water included)	≤0.1%
Residual methyl acrylate	≤6ppm
Residual vinylidene chloride	≤5ppm
Average particle size (laser scanning method)	250-300um

Film Properties(1)

Item	Value
Water vapor transmission rate (38℃，90RH)	0-10 g/m2.24h
Oxygen transmission rate （23℃，75RH）	10-25 ml/m2.24h
Heat shrinkage performance(2)	40-50 %

Note: (1)Five-layer barrier films: lamination structure PE/EVA/resin10/EVA/PE; The film thickness is 55um, while the thickness of PVDC layer is 4-6 um. The film samples have not been electron beam

radiation cross-linking.

(2)Heat Shrinkage condition: Temperature 85℃; Duration: 5 s.

*The values given in this document are used as reference values for customers and not as product standards*

Feature Of PVDC For Fresh Meat Packaging

Excellent Oxygen,Odour And Water Vapor Barrier

Strong Toughness

High Heat Shrinkage Performance

Good Chemical Durability

Good Oil Resistance

Good Flame Retardancy

Comply With GB9685 Food Hygienic Standard

Attention Of Using PVDC For Fresh Meat Packaging

PVDC resin 10 is a kind of thermosensitive resin. It will block the flowing channel and cause the machine break down if the residence time takes too long. The machine needs to be dismantled to clean up before restart. Thermal degradation during melt processing will release hydrogen chloride (HCL) gas.

For PVDC, Radiation Cross-Linking is a kind of damage to the PVDC crystal layer, and the smaller of time and strength, the better. The cross-linking strength can reach the goal of PE Cross-Linking without damaging the PVDC crystal layer under slight time and strength. The barrier of the product will decrease follow the strength of Radiation Cross-Linking.

Packaging And Transportation of PVDC Resin

Considering the characteristics of the product, it should be loaded and discharge lightly during transportation to prevent collision, rain, sun exposure, and pollution. Products should be stored in a ventilated, dry, and clean warehouse, and stacking is strictly prohibited.The Packaging is 1Ton/Bag or 50kg/Cardboard Drum
